Edelbrock 46760 EForce Supercharged LS Performance Crate Engine, Chevy
$33,481.95
- 702 HP And 695 ft./lbs. Torque On 91-Octane
- New LS3 Aluminum Block
- Forged Manley Internals
Did you like this product? Add to favorites now and follow the product.
Add to Wishlist
Add to Wishlist

Have a Question? Ask a Specialist
+1 (616) 387-2903 sales@windycitymotorsllc.com
Description
Finally, this package is our most complete solution, This option includes all of the components found in kits number 46740 and number 46750. It includes a complete engine, wiring harness, pre-programmed ECU, electronic throttle pedal, MAFS, heated oxygen sensors anda ccessories. This engine package is the ultimate turn key solution for any project vehicle demanding an LS3 engine!
Charts
Guides & Documents
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
KEY SPECS | |
---|---|
MFG. Part # | 46760 |
Brand | Edelbrock |
Crate Engine Type | Long Block |
Engine Displacement | 416 cu. in. |
Horsepower | 676 horsepower |
Torque | 695 ft./lbs. |
Cylinder Head Material | Aluminum |
Piston Material | Forged Aluminum |
Crankshaft Material | Forged Steel |
Camshaft Duration (.050 in) | 215° intake / 247° exhaust |
Camshaft Lift (in) | .629 intake / .656 exhaust |
Carburetor Included | No |
Intake Manifold Included | Yes |
Distributor Included | Yes |
Valve Covers Included | Yes |
Engine Balance | Internal |
Cylinder Heads Included | Yes |
Rear Main Seal Style | 1-piece |
Throttle Body Included | Yes |
Oil Pan Included | Yes |
Timing Cover Included | Yes |
Water Pump Included | No |
Harmonic Balancer Included | Yes |
Flexplate Included | No |
Flywheel Included | No |
Air Cleaner Included | Yes |
Spark Plugs Included | No |
Spark Plug Wires Included | Yes |
Computer Included | Yes |
Wiring Harness Included | Yes |
Recommended Fuel | 91 Octane |
GENERAL | |
Assembled | Yes |
Camshaft Included | Yes |
Material Type | Aluminum |
Rocker Arms | Roller |
Rocker Arm Ratio | 1.7:1 |
GTIN Code | 085347467600 |

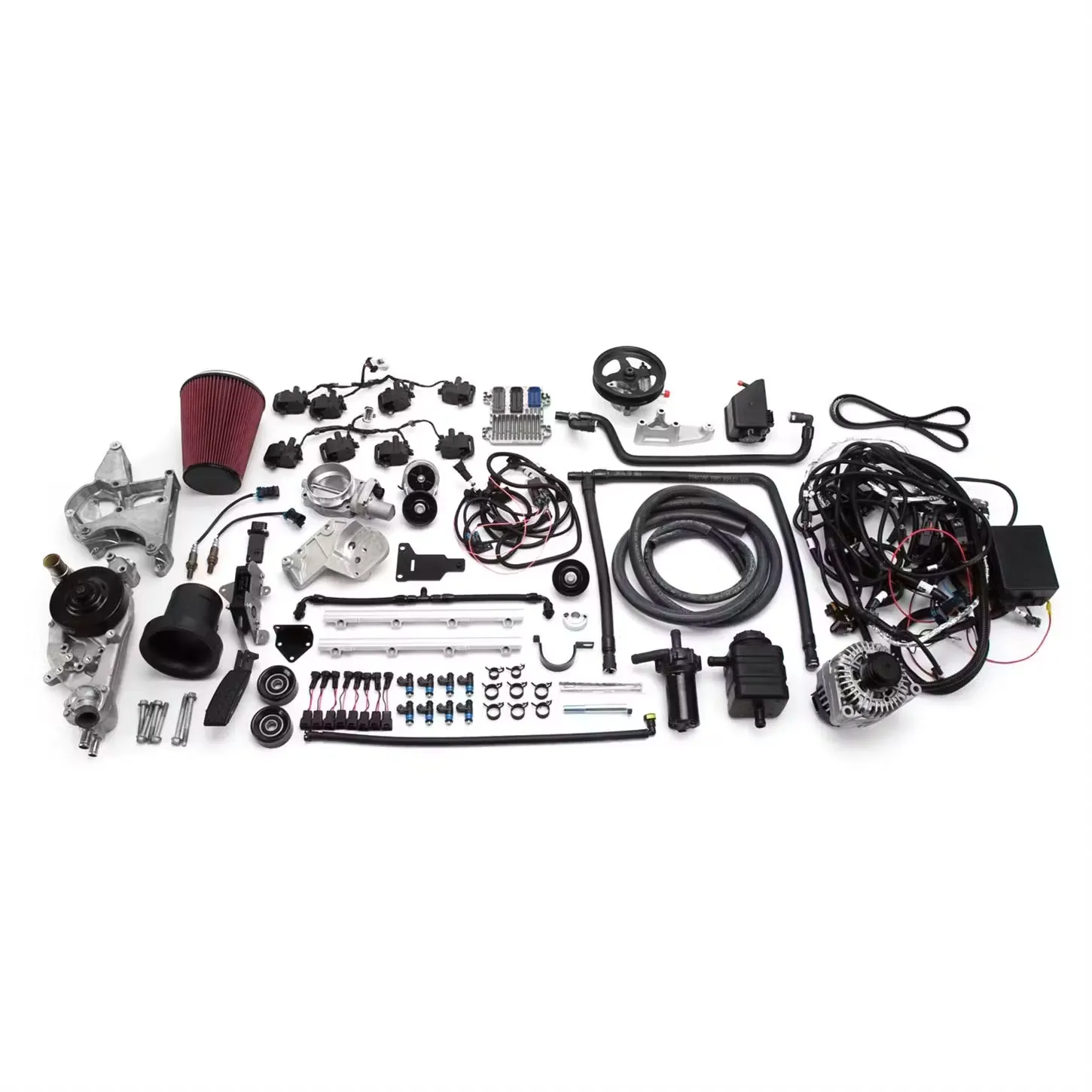

Notes | Includes electronic throttle pedal, mass airflow sensor, ignition coil packs, heated oxygen sensors with accessories, electric intercooler pump, intercooling plumbing, intercooler recovery tank, fuel rails, 60 lb/hr. fuel injectors, mass airflow sensor |
Sold in Quantity | Each |
