Description

Power

• Engine: 4-stroke, 52-degree V-twin, liquid-cooled
• Displacement: 1,700cc/103.7 cu in
• Bore x Stroke: 102.0 x 104.0mm
• Compression Ratio: 9.5:1
• Fuel System: DFI 42mm Throttle Bodies (2)
• Ignition: TCBI w/ Electronic Advance
• Transmission: 6-speed with overdrive and positive neutral finder
• Final Drive: Carbon fiber-reinforced belt

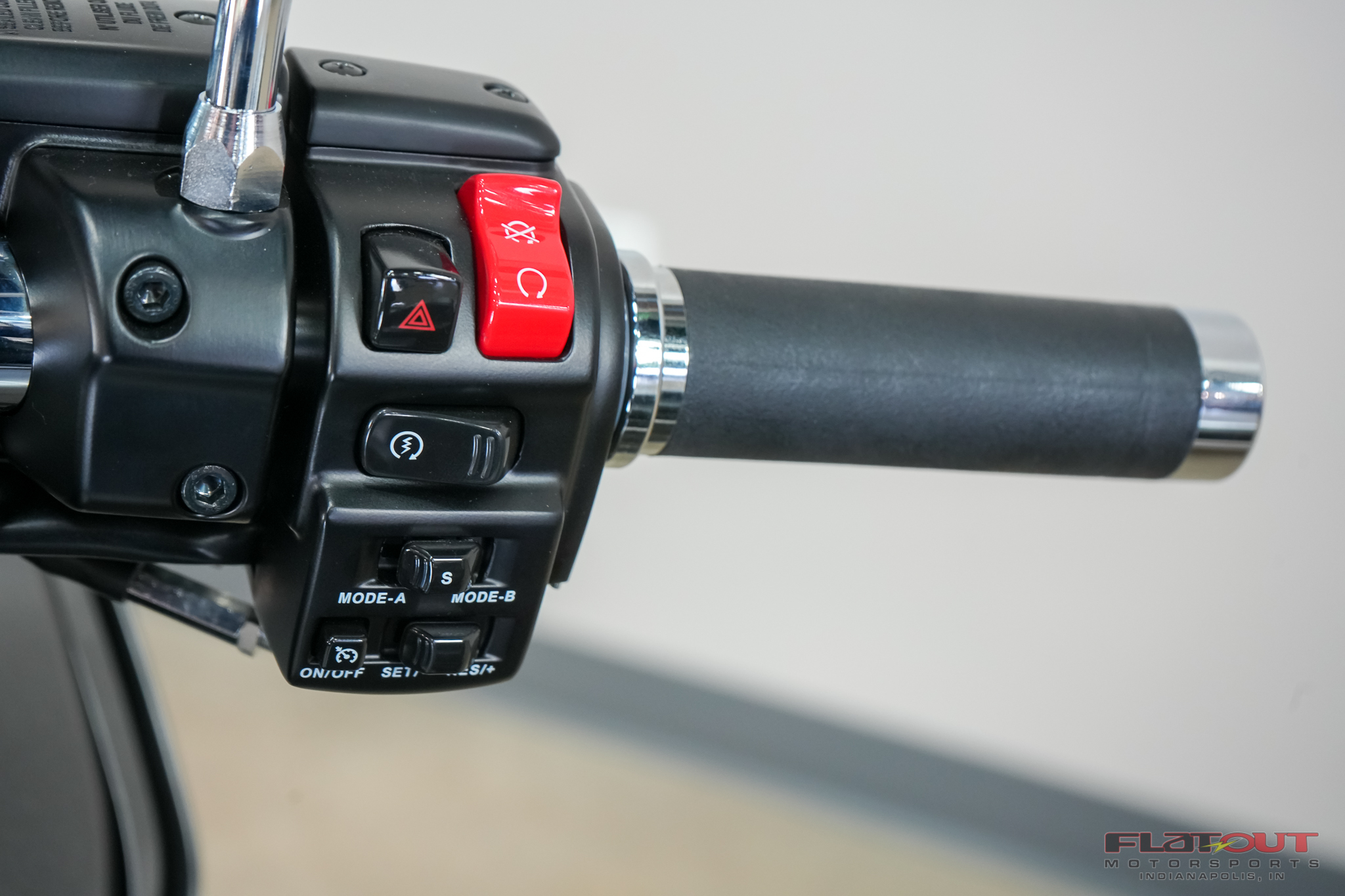

• Electronic Rider Aids: Electronic cruise control, Kawasaki Advanced Coactive-Braking Technology (K-ACT II) ABS
• Maximum Torque: 107.6 lb-ft @ 2750 rpm

Performance

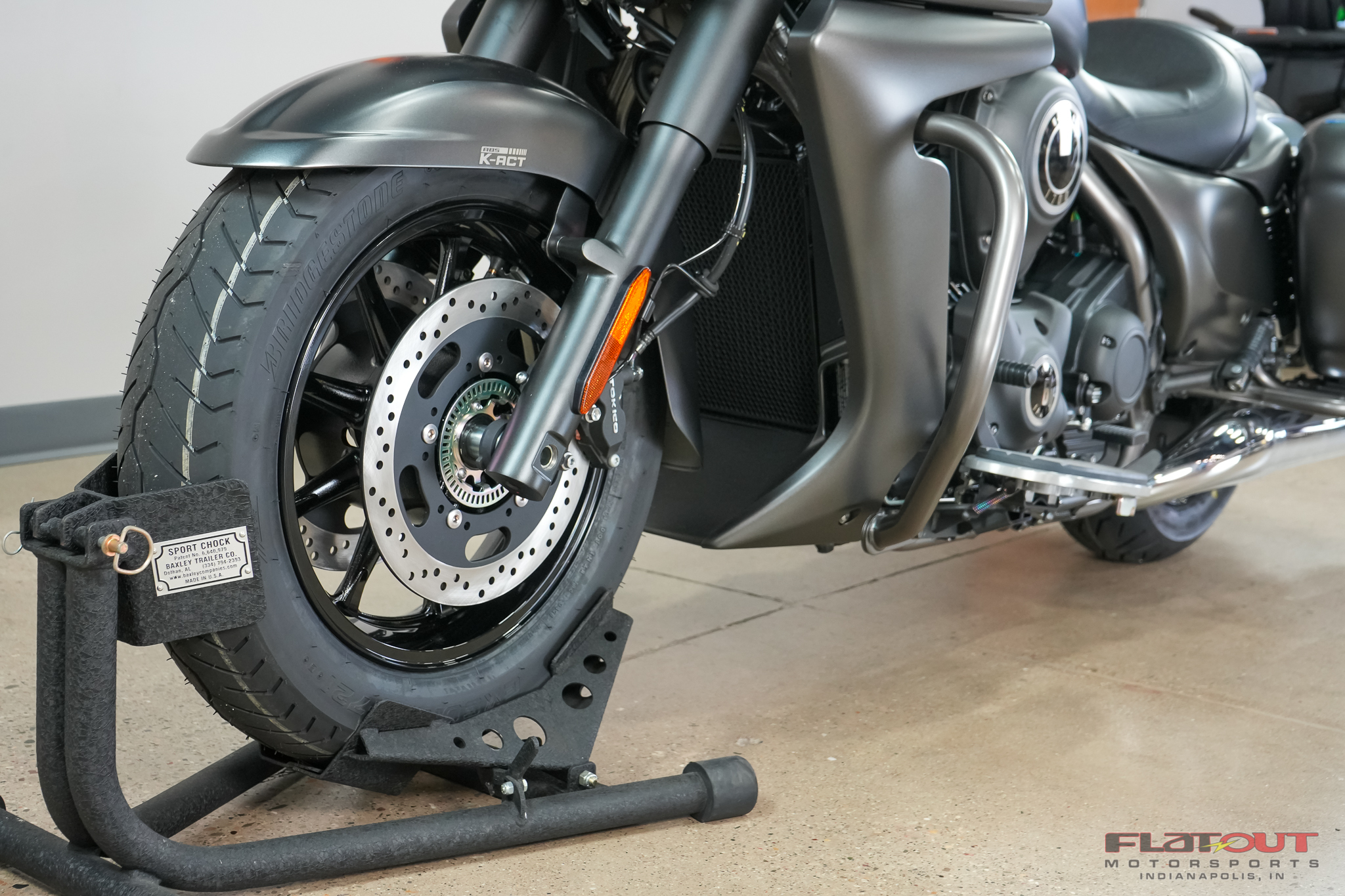

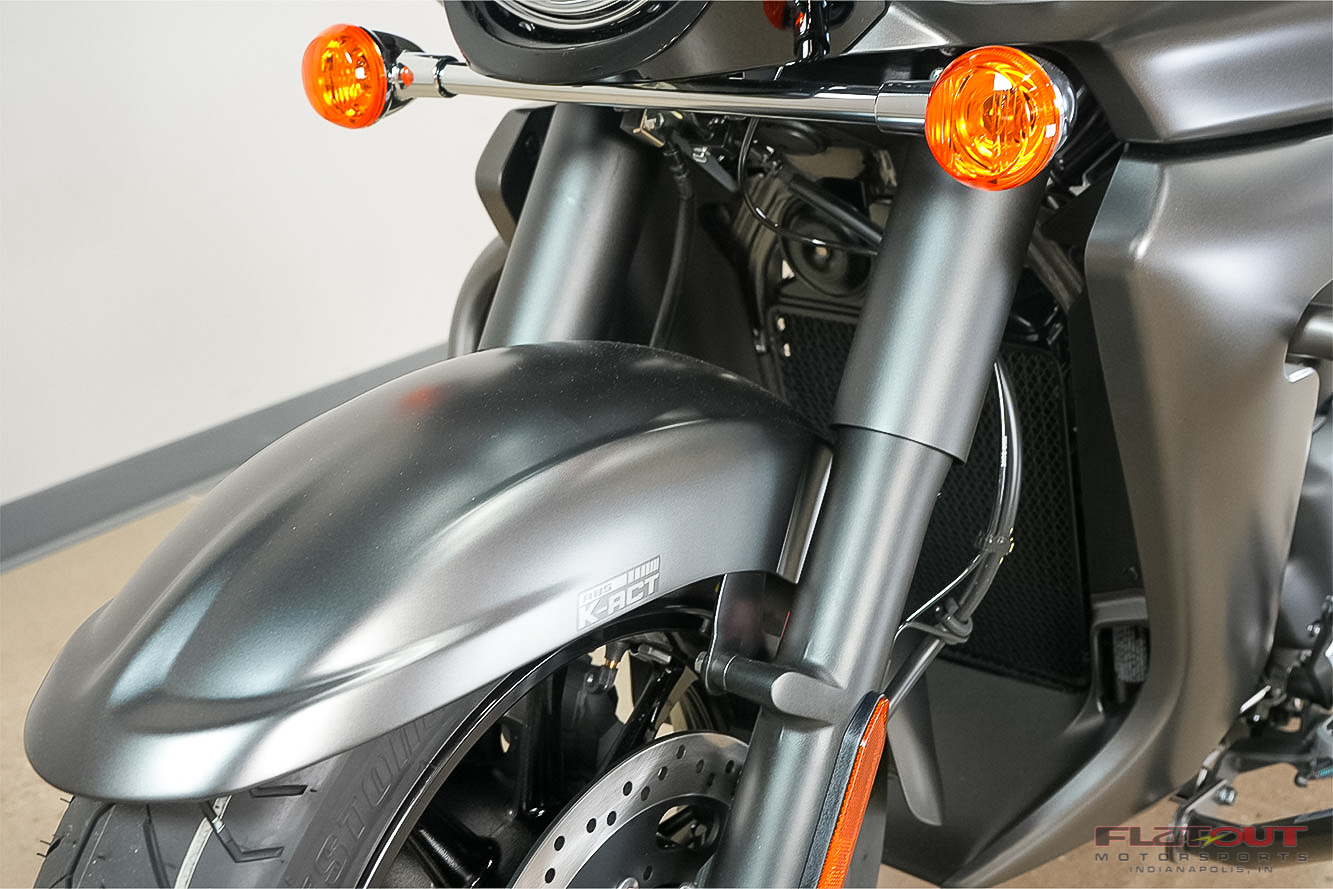

• Front Suspension / Wheel Travel: 45mm Showa telescopic fork/5.5 in
• Rear Suspension / Wheel Travel: Swingarm with twin air-assisted shocks, with 4-way rebound damping/3.1 in
• Front Tire: 130/90-16
• Rear Tire: 170/70-16

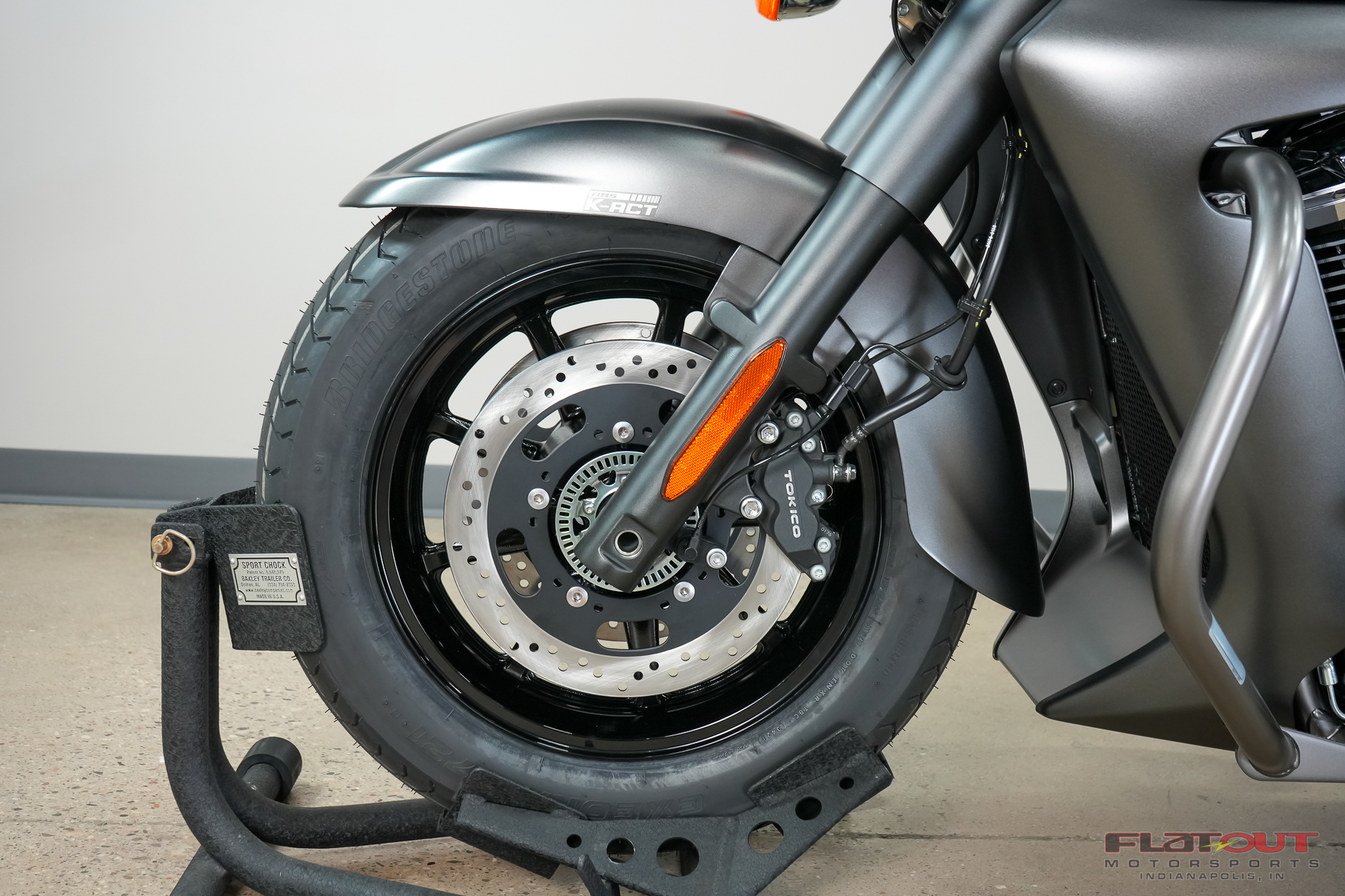

• Front Brakes: Dual 300mm discs, dual four-piston calipers, K-ACT II ABS
• Rear Brakes: Single 300mm disc, twin-piston caliper, K-ACT II ABS

Details

• Frame Type: Steel, double-cradle with box-section single-tube backbone
• Rake/Trail: 30/7.0 in
• Overall Length: 98.8 in
• Overall Width: 38.2 in
• Overall Height: 50.8 in
• Ground Clearance: 5.7 in
• Seat Height: 28.7 in
• Curb Weight: 844.5 lb**
